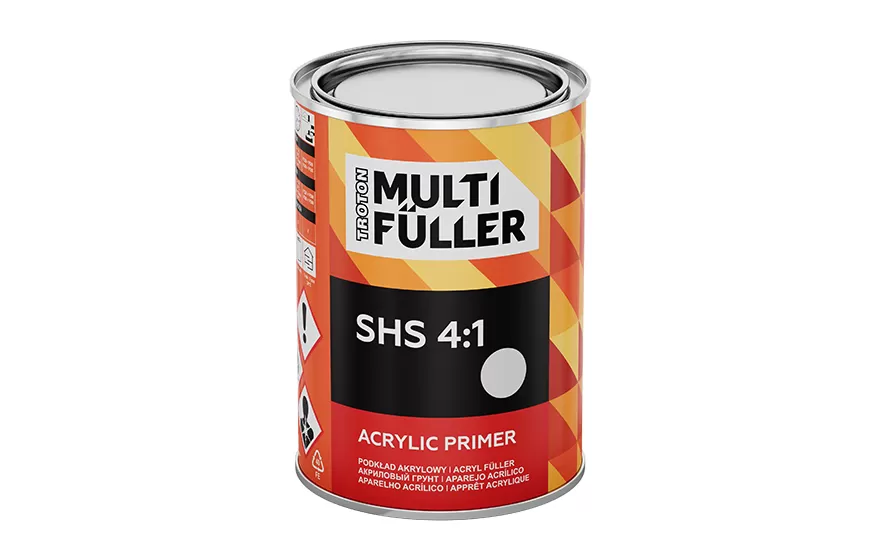

Acryl Filler SHS 4:1

Filling acryl filler to zinc coated steel

Variants

ColourArt. No.CapacityQuantity per carton
grey2816 0,8 l + 0,2 l6
white28120,8 l + 0,2 l6
black2813 0,8 l + 0,2 l6
grey100223,75 l4
white 100243,75 l4
black100233,75 l4
hardener100250,94 l4

Gloss grade

matt
Acryl Filler SHS 4:1

Technical documentation

Weight/Volume Calculator

mlg
Primer
Hardener:00
Total of mixture00
Minimum thinner0%00
Total of mixture00
Maximum thinner0%00
Total of mixture00
Thinner value %00
Warning: Value is not within the tolerance given by the manufacturer. (Min: , Max: ).
Total of mixture00

Video

Description

High quality bicomponent acrylic filler with great adhesion to steel, aluminium, zinc coated steel, poliester putties and old varnished surfaces. HS product with high solid content which gives perfect filling. Dedicated for car body repairs.

Advantages

  • Great adhesion to difficult substrates.
  • Good filling and isolating substrates.
  • Easy to mix and apply.
  • Very good stability on vertical surfaces.

Substrates

Acryli filer SHS 4:1 can be applied over:

  • Steel and aluminum after sanding and degreasing.
  • Zinc coated steel after sanding and degreasing.
  • Sanded Glass Fibre (GFK/GRP).
  • Polyester putties,
  • Wash primers.
  • Epoxy fillers.
  • Old or factory finishes in good condition after sanding and.

Good surface preparation is necessary to achieve the best results of repairs. Recommended sand paper with gradation as follows:

  • sanding by hand (dry or wet ) : P280÷P320 (GRP P400).
  • sanding by machine (dry) : P180÷P220.

Important informations

  • Przetrzeć odtłuścić

    degrease

  • Proporcje mieszania

    Mixing ratio by weight
    4 : 1 + 10% (filling)
    4 : 1 + 20% (priming)

  • Lepkość natryskowa

    Spray viscosity
    40÷50 sec / 20°C (filling)
    25÷30 sec / 20°C (priming)

  • Żywotność mieszanki

    Pot life
    60 min. / 20°C

  • Liczba warstw

    1÷3 layer
    HVLP / RP
    ø1,6 ÷ 2,0 mm

  • Czas odparowania

    between layers
    5÷10 min.

  • Czas odparowania

    before baking
    10 min.

  • Czas utwardzania

    Curing time
    Filling primer /130÷300 µm/ – ready to sand after drying overnight.
    Grounding primer /60÷130 µm/ – ready to sand after 3÷4 h.

    Filling primer /130÷300 µm/ – ready to sand after baking for 35÷40 minutes and cooling dawn (about 2 hrs.).
    Grounding primer /60÷130 µm/ – ready to sand after baking for 25÷30 minutes and cooling dawn (about 2 hrs).

  • Szlifowanie na sucho

    P360 ÷ P500

  • Szlifowanie na mokro

    P600÷P1000

Application process

  • Zastosowanie
  • Use

    For car repairs as a filling or grounding(thin film) filler.

  • Proporcje mieszania
  • Mixing ratio by volume

    Filler: 4
    Hardener: 1
    Thinner: 10% (filling primer), 20% (grounding primer)

    Stir well smooth mixture is achieved.

  • Lepkość natryskowa
  • Spraying viscosity

    40÷50 seconds at 20°C (filling primer )
    25÷30 seconds at 20°C (grounding primer).

  • Żywotność mieszanki
  • Pot life

    Approx. 60 minutes at 20°C

  • Liczba warstw
  • Number of layers

    1÷3 layers; 60÷300µm depending on the size of the gun nozzle.

    Parameters for RP spray gun
    Nozzle: 1,6÷2,0 mm; Pressure : 2,0-2,2 bar.

    Parameters for HVLP spray gun
    Nozzle: 1,5÷1,9 mm; pressure inside the nozzle: 2,0 bar.

  • Czas odparowania
  • Evaporation time

    Between coats: 5÷10 minutes
    Before baking: 5÷15 minutes

    Evaporation time depends on temperature and film thickness.

  • Czas utwardzania
  • Curing time

    At 20°C:
    Filling primer /130÷300 µm/ – ready to sand after drying overnight.
    Grounding primer /60÷130 µm/ – ready to sand after 3÷4 h.

    At 60°C object temperature:
    Filling primer /130÷300 µm/ – ready to sand after baking for 35÷40 minutes and cooling dawn (about 2 hrs.).
    Grounding primer /60÷130 µm/ – ready to sand after baking for 25÷30 minutes and cooling dawn (about 2 hrs).

    Temperature below 20°C significantly increases the hardening time.

  • Suszenie promieniem IR
  • IR drying

    Filling primer /130÷250µm/: 15÷20 minutes of short wave.
    Grounding primer /60÷130 µm/: 8÷10 minutes of short wave.
    Do not exceed the temperature of 60°C.
    Use according to recommendations of manufacturer.
    Wait 10 minutes before IR drying.

  • Szlifowanie na sucho
  • Dry sanding

    Grinding machine: P360÷P500.
    Hand sanding: P280÷P320.

  • Szlifowanie na mokro
  • Wet sanding

    Hand sanding: P800÷P1000.
    Grinding machine: P600÷P1000.

  • Informacja
  • Further work

    2K acrylic fillers can be directly over coated with:

    • 2K acrylic top coats
    • 1K base coats
  • Informacja
  • General notes
    • Do not exceed recommended doses of hardener!
    • The best repair results can be achieved at room temperature. Temperature in body shop and temperature of a product should be the same.
    • When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and respiratory system.
    • Clean the guns and equipment immediately after use.
    • The rooms should be well ventilated.

    Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
