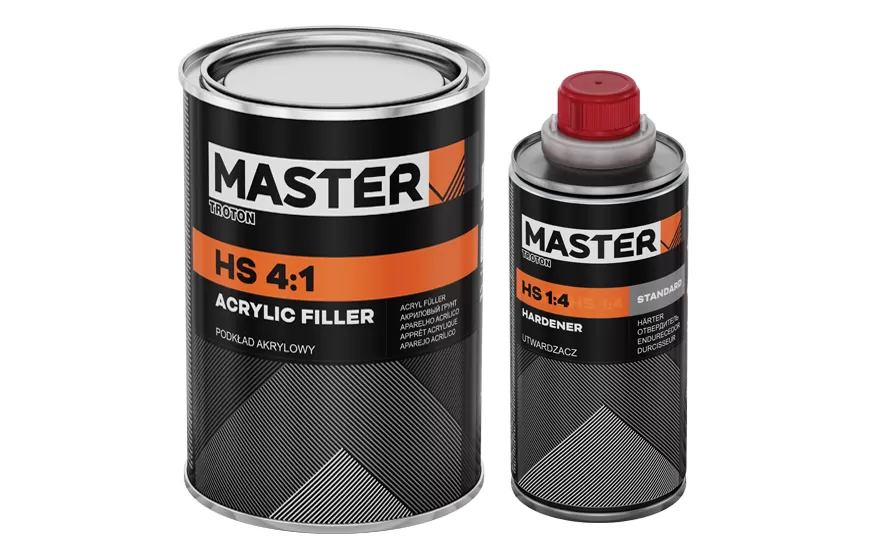

HS 4:1

Acrylic primer

Variants

Colour Art. No. Capacity Quantity per carton
grey1328 0,8 l + 0,2 l6
white6327 0,8 l + 0,2 l6
black6328 0,8 l + 0,2 l6

Gloss grade

matt
HS 4:1

Technical documentation

Weight/Volume Calculator

mlg
Primer
Hardener:00
Total of mixture00
Minimum thinner0%00
Total of mixture00
Maximum thinner0%00
Total of mixture00
Thinner value %00
Warning: Value is not within the tolerance given by the manufacturer. (Min: , Max: ).
Total of mixture00

Video

Description

2K high build acrylic primer for car body repairs. Basic primer with good coverage and strong filling. Features very good adhesion to aluminum and steel surfaces as well as great vertical stability.

Advantages

  • Easy to mix and apply.
  • Short curing time.
  • Good filling properties.

Substrates

Acrylic Filler HS 4:1 can be applied over:

  • Steel and aluminum after flatting and degreasing.
  • Polyester glass laminates (GFK/GRP).
  • 2K polyester body fillers and putties.
  • Wash primers.
  • 2K epoxy primers.
  • Old finishes in good condition after matting and degreasing.

Good preparation is necessary for achieving best results.

Important informations

  • Przetrzeć odtłuścić

    degrease

  • Proporcje mieszania

    Mixing ratio
    4 : 1 + 15÷20%

  • Lepkość natryskowa

    Spraying viscosity
    30÷50 s / 20°C

  • Żywotność mieszanki

    Pot life
    ~60 min. / 20°C

  • Liczba warstw

    2÷3 layers
    HVLP / RP
    ø1,5 ÷ 2,0 mm

  • Czas odparowania

    between layers
    5 min

  • Czas odparowania

    before baking
    10 min

  • Czas utwardzania

    Hardening time
    3÷4 h / 20°C
    30 min / 60°C

  • Szlifowanie na sucho

    P360÷P500
    P280÷P320

  • Szlifowanie na mokro

    P600÷P1000
    P800÷P1000

Application process

  • Zastosowanie
  • Use

    For car repairs as a filling primer.

  • Proporcje mieszania
  • Mixing ratio by volume

    Primer: 4
    Hardener: 1
    Thinner: 15÷20%

    Stir thoroughly until achieving homogenous mixture.

  • Lepkość natryskowa
  • Spraying viscosity

    30÷50 seconds at 20°C

  • Żywotność mieszanki
  • Pot life

    approx. 60 minutes at 20°C

  • Liczba warstw
  • Number of layers

    2÷3 layers; 80µm for a single layer.

    Gun parameters:
    RP nozzle: 1.6÷2.0 mm; Pressure of input: 2.0÷2.2 bars.
    HVLP nozzle: 1.5÷1.9 mm; Inlet pressure: 2.0 bars.

  • Czas odparowania
  • Evaporation time

    between layers: approx. 5 minutes
    before baking: approx. 10 minutes

    Evaporation time depends on the temperature and the number of layers.

  • Czas utwardzania
  • Hardening time for thickness 200 µm
    • Approx. 3÷4 hours at 20°C
    • Approx. 30 min at 60°C

    Temperatures below 20°C significantly increases the drying time.

  • Suszenie promieniem IR
  • IR drying

    10÷15 minutes of short waves for the thickness of 150÷250 µm. Do not exceed 60°C. Use as recommended by the equipment manufacturer. Wait about 10 minutes before starting the heater drying.

  • Szlifowanie na sucho
  • Dry sanding

    Machine sanding: P360÷P500
    Manual sanding: P280÷P320

  • Szlifowanie na mokro
  • Wet sanding

    Machine sanding: P600÷P1000
    Manual Sanding: P800÷P1000

  • Informacja
  • Further work

    2K acrylic primers can be directly over coated with:

    • 2K acrylic topcoats,
    • 1K basecoats.
  • Informacja
  • General notes
    • Do not exceed recommended doses of hardener!
    • The best repair results you can achieve at room temperature. Temperature in body shop and temperature of a product should be the same.
    • When working with 2K products, it is recommended to use personal protection equipment. Protect the eyes and air ways.
    • The rooms should be well ventilated.
    • Clean the guns and equipment immediately after use.

    Caution: To maintain safety, always follow the instructions given in the MSDS for the products.
